Quick Details

  • Brand Name: JNDFA CCAG
  • Model: JDF5022XLCS
  • Place of Origin: CHINA HUBEI SUIZHOU
  • Transmission Type: Manual
  • Condition: New
  • Horsepower: < 150hp
  • Emission Standard: Euro 3
  • Fuel Type: Gasoline
  • Dimensions (L x W x H) (mm): 4150 X 1530 X 2280 (mm)
  • Box Dimensions (L x W x H) (mm): 2340 X 1380 X 1380 (mm)
  • Temperature Range: -30 +30
  • Gross Vehicle Weight: 1800

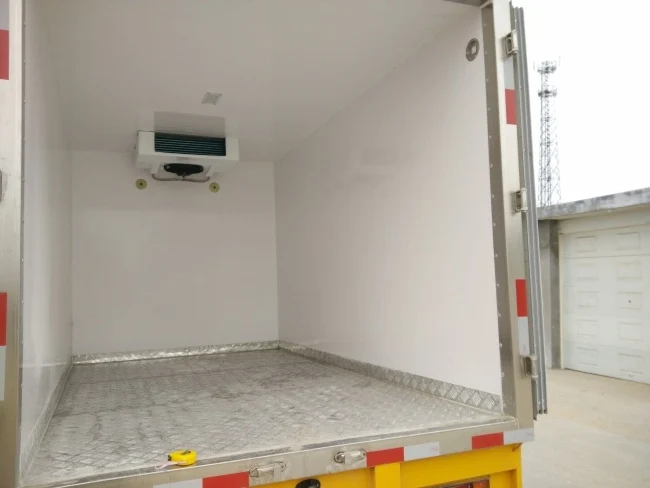

  • Freezer box capacity: 4.5 CBM
  • air conditioner: Not Have
  • freeze box materials: Pu materials, glass fiber reinforced plastic
  • The lowest temperature: -5 (can choose -15)
  • Meat hook: can choose
  • aluminum alloy guide rail: can choose
  • Warranty: one year
  • Fuel type: Gasoline
  • door: rear door
  • color: white (can choose other color)

Packaging & Delivery

Packaging Details waxed before ship
Delivery Time 7 days

Specifications

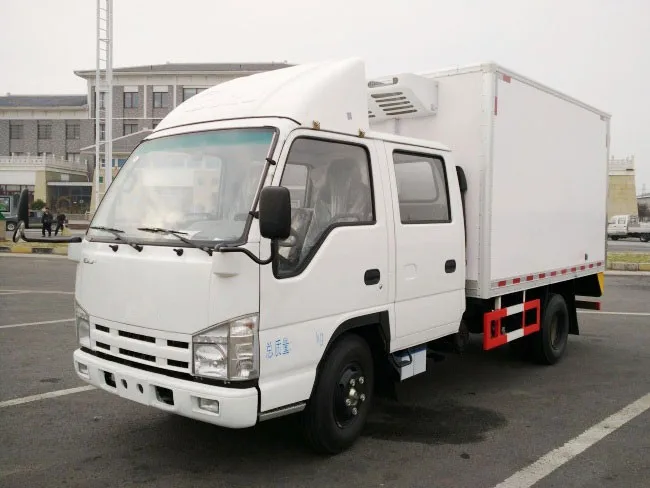

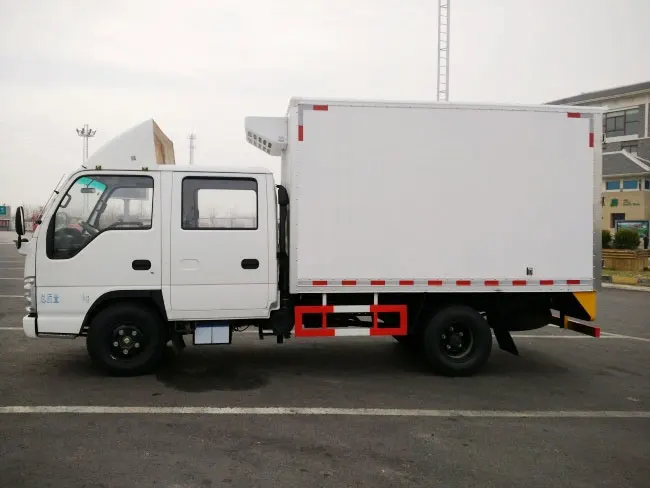

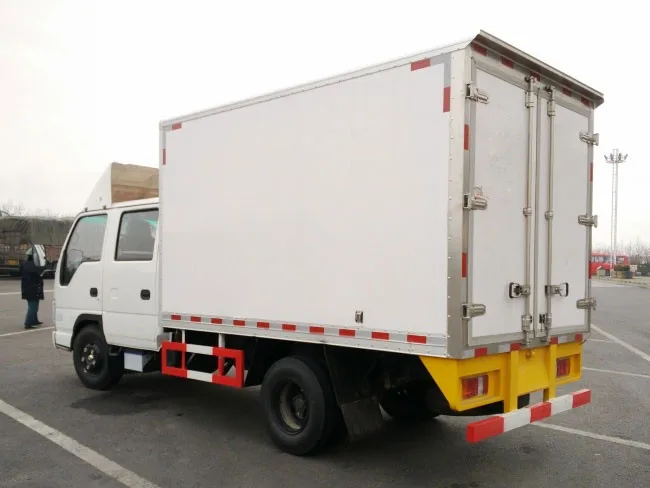

JDF5022XLCS changan CCAG refrigerated truck 1 ton 2 ton for sale
Mini freezer truck
1-2Ton
-15 -30



Product Description

  JDF5022XLCS changan CCAG refrigerated truck 1 ton 2 ton -30 for sale



JDF5022XLCS changan CCAG refrigerated truck 1 ton 2 ton  for sale Vehicle Name:Refrigerated trucksVehicle Category:Special Purpose Vehicle
Chinese Brand:JNDFAEnglish brand :
Notice batch :240Exemption:No
EngineEngine ManufacturerDisplacement (ml)Power (kw)
JL466Q4Chongqing Changan Automobile Co., Ltd.101239
Engine brand : Fuel type:Gasoline
Dimensions:4150 × 1530 × 2280 (mm)Compartment Size :2340 × 1380 × 1380 (mm)
The total mass :1800 (Kg)Payload:0.5
Curb weight:1200 (Kg)Rated Quality:470 (Kg)
Quality Trailer :(kg)Semitrailer saddle :
Rated capacity :( People )Cab seats :( People )
Approach / departure angle :58/29 ()Front / rear overhang :480/1170 (mm)
Axle load:860 / 940Wheelbase:2500 (mm)
Number of axes:2Maximum speed:95 (km / h)
Fuel consumption:7.3Spring:- / 5
Number of tires :4Tire Size:165/70R13LT, 165/70R1379T
Front track:1280Rear track:1290
Brake Front: After braking :
Built before the parade : After operating system :
Steering Type :Steering wheelStarting method:
Chassis Emission standard:GB18352.3-2005 National
Transmission Type: According to the standard :
Vin Vehicle Identification Number:LSCBBN3D × × × × × × × × ×
Logo Enterprises :Zhejiang Daoming Optics Co., Ltd.Release date:20120919
Vehicle Notes :Envelope at the top closed, not open ; optional side door ; optional other manufacturers power refrigeration unit.
SC1022DB4 chassis parameters
Changan truck chassis | Changan brand SC1022DB4 truck chassisSpecification
Company Name :JNDFA
Chassis Type:SC1022DB4Chassis Category:II
Product Name:Truck chassisProduct Brand:Changan brand
Zip Code:073000Catalog number :22
Specifications:Length: 4080 Width: 1475 Height: 1810
Fuel Type:GasolineAccording to the standard :GB18352.3-2005 National
Steering Type :Steering wheel
Number of axes:2Wheelbase:2500
Spring:- / 5Number of tires :4
Tire Size:165/70R13LT, 165/70R1379TTread :Front track 1280 Rear track 1290
The total mass :1800
Curb weight:755Quality Trailer :
Semitrailer saddle : Front passenger :2
Close to the departure angle:58 /40Rear suspension :480 /1100
Maximum speed:98
Picture:
Changan truck chassis | Changan brand SC1022DB4 truck chassisEngine Specification
Engine ModelEngine ManufacturerDisplacement (ML)Power (ML)
JL466Q4Chongqing Changan Automobile Co., Ltd.101239
Identification code :LSCBBN3D × × × × × × × × ×
Other:Optional air conditioning with OBD
Changan truck chassis | Changan brand SC1022DB4 truck chassisOther Information
Changan brand SC1022DB4 truck chassis all modelsJNDFA
JDF5022XLCS changan CCAG refrigerated truck 1 ton 2 ton  for sale




Certifications





factory show





customers visit





Packaging & Shipping

Waxed before shipping , shipped by RORO or bulk ship





FAQ

Q:How about the warranty?

A:One year



Q:Do you have ISO certificate ?

A:Yes , we have,pls contact us to get our certifications.



Q:How about the delivery time?

A: Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.



Q:How about shipping ?

A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container , small type can shipping by container ,Pls contact us to get a shipping quotation .



Q: How many trucks does your factory produce per years?

A:Almost 3500 units



Q: How do you control the quality of product?

A:Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.



Q: How about your product After-sales service system?

A:Our main export country have accepted after-sales service,some of country used the third department service.



Q: Do you accept Custom orders? What’s is your MOQ order?

A:Yes, we do, our MOQ is 1 set.



Q: What’s the payment terms?

A:By T/T or L/C at sight.



Q: How about your shipment?

A:Small one put into container,bigger one By Ro-Ro ship, Bulk ship,or 40FR.

Q:Which country do you have exported to?

A:We have exporter to many countries,such as Albania,Algeria,Angola,Afghanistan,Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,Morocco,Myanmar,Mongolia,New Zealand, Nigeria,Peru,Philippines,Qatar,Saudi Arabia,Singapour,Sudan,South Sudan,Tanzania,Thailand,Togo,Tunisia,Venezuela,Zambia etc.
