Quick Details

  • Condition: New
  • Transmission Type: Manual
  • Emission Standard: Euro 3
  • Fuel Type: Diesel
  • Dimensions (L x W x H) (mm): 7500 X 2400X 3000 (mm)
  • Gross Vehicle Weight: 13400
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: FOTON JIANGTE JIANGNAN JDF JIANG
  • Model Number: JDF5130ZYSB
  • Hotline: 0086-155 8888 8989

Packaging & Delivery

Packaging Details Waxed before ship
Delivery Time 7 DAYS

Specifications

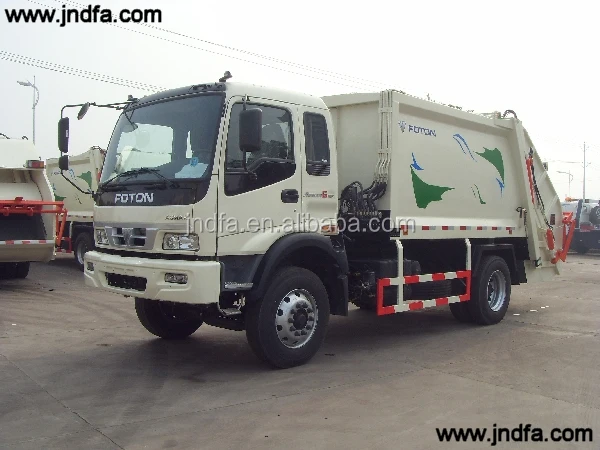

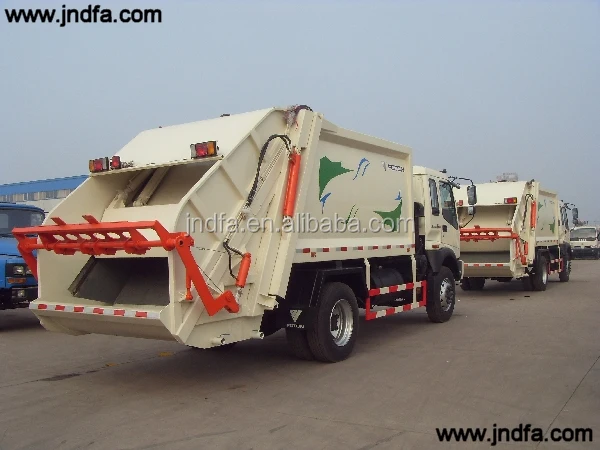

FOTON compression compactor garbage truck 16cbm (JDF5130ZYSB Jiang special compression garbage truck )

Vehicle Name:Compression garbage truckVehicle Category:Special Purpose Vehicle
Chinese Brand:Jiang special brandEnglish brand :
Notice batch :247Exemption:No
EngineEngine ManufacturerDisplacement (ml)Power (kw)
CA4DF3-17E3FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Branch4752132
Engine brand : Fuel type:Diesel (mm)
Dimensions:7500 × 2400 × 3000 (mm)Compartment Size :× × (mm)
The total mass :13400 (Kg)Payload:0
Curb weight:9325 (Kg)Rated Quality:3880 (Kg)
Quality Trailer :(kg)Semitrailer saddle :
Rated capacity :( People )Cab seats :( People )
Approach / departure angle :20/9 ()Front / rear overhang :1365/2335 (mm)
Axle load:4400 / 9000Wheelbase:3800 (mm)
Number of axes:2Maximum speed:90 (km / h)
Fuel consumption: Spring:10/ 10 +2
Number of tires :6Tire Size:9.00-20,9.00 R20
Front track:1900Rear track:1800
Brake Front: After braking :
Built before the parade : After operating system :
Steering Type :Steering wheelStarting method:
Chassis Emission standard:GB17691-2005 National , GB3847-2005
Transmission Type: According to the standard :
Vin Vehicle Identification Number:LRDV5PDB × × × × × × × × ×
Logo Enterprises :Plast Plastics Co., Ltd. ChangzhouRelease date:20130410
Vehicle Notes :Side guards Material Material : Q235, connection: welding ; car drive recorder installed .
BJ5133EGFFA-S chassis parameters
Auman compression garbage truck chassis | Auman brand BJ5133EGFFA-S compression garbage truck chassisSpecification
Company Name :Beijing Foton Daimler Automotive Co., Ltd.
Chassis Type:BJ5133EGFFA-SChassis Category:II
Product Name:Compression garbage truck chassisProduct Brand:Auman brand
Zip Code:101400Catalog number :12
Specifications:Length: 6500 Width: 2330 Height: 2700
Fuel Type:Diesel fuelAccording to the standard :GB17691-2005 National , GB3847-2005
Steering Type :Steering wheel
Number of axes:2Wheelbase:3800
Spring:10/ 10 +2Number of tires :6
Tire Size:9.00-20,9.00 R20Tread :Front track 1900 Rear track 1800
The total mass :13400
Curb weight:4850Quality Trailer :
Semitrailer saddle : Front passenger :2,3
Close to the departure angle:20/10Rear suspension :1365 / 1335
Maximum speed:90
Picture:
Auman compression garbage truck chassis | Auman brand BJ5133EGFFA-S compression garbage truck chassisEngine Specification
Engine ModelEngine ManufacturerDisplacement (ML)Power (ML)
CA4DF3-17E3FAW Jiefang Automotive Co., Ltd. Wuxi Diesel Engine Branch4752132
Identification code :LRDV5PDB × × × × × × × × ×
Other:Net engine power : CA4DF3-17E3: 125KW
Auman compression garbage truck chassis | Auman brand BJ5133EGFFA-S compression garbage truck chassisOther Information
Auman brand BJ5133EGFFA-S compression garbage truck chassis all modelsAdopt Beijing Foton Daimler Automotive Co., Ltd. Chassis all models

JDF5130ZYSB compression garbage truck exemption notice
Vehicle NameVehicle categoryManufacturerPictureRemark
Compression garbage truckGarbage vehiclesHubei Jiangnan Special Automobile Co., Ltd.jndfa at hotmail.comSection 21 Section 83
